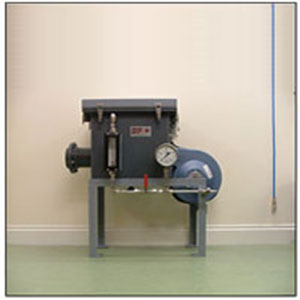

Type 4100250/F Sodium Chloride Aerosol Generator

Specification and Services.

Purpose.

Generate a sodium Chloride aerosol which meets the requirements of EN 13274-1 and EN149, when operated at 7 bar[100psig] with 2% w/v Na. Cl. Solution.
For use in conjunction with a Low flow Sodium Flame photometer.

Concentration.

7mg/m3 @ 7000 l/min

Compressed Air.

100g Na. Cl./ Litre.
Clean, dry, oil free compressed air, 100 l/m @ 7 bar. [ 3,5 CFM @ 100 psig.]

Dimensions.

0,8m long x 0,78m high x 0,4m deep.

Weight.

23 Kgs.

Finish.

Frame Stand : – Powder Coated mid grey.
Reservoir : – Grey UPVC

Services.

Power Supply :-

230 Vac 50/60 Hz 2,5 Amps.

Air Supply :-

Clean, dry, oil free compressed air.
100 l/m @ 7 bar. [ 3,5 CFM @ 100 psig.]

Sodium Chloride Solution :-

20 grams Na. Cl. per Litre Water.
Na. Cl. should be laboratory grade.
Water should be de-mineralised or better.

Prime Calibration :-

Before dispatch includes, Atomizer nozzle [ free air flow ] Pressure gauge at 100psig and Flow meter at 95 & 100 l/m..
